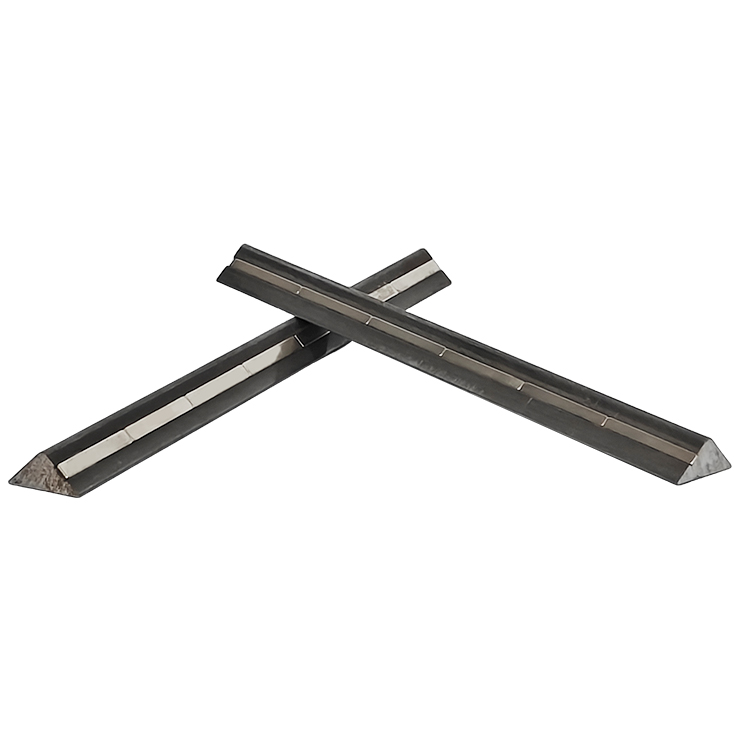

Product Features:

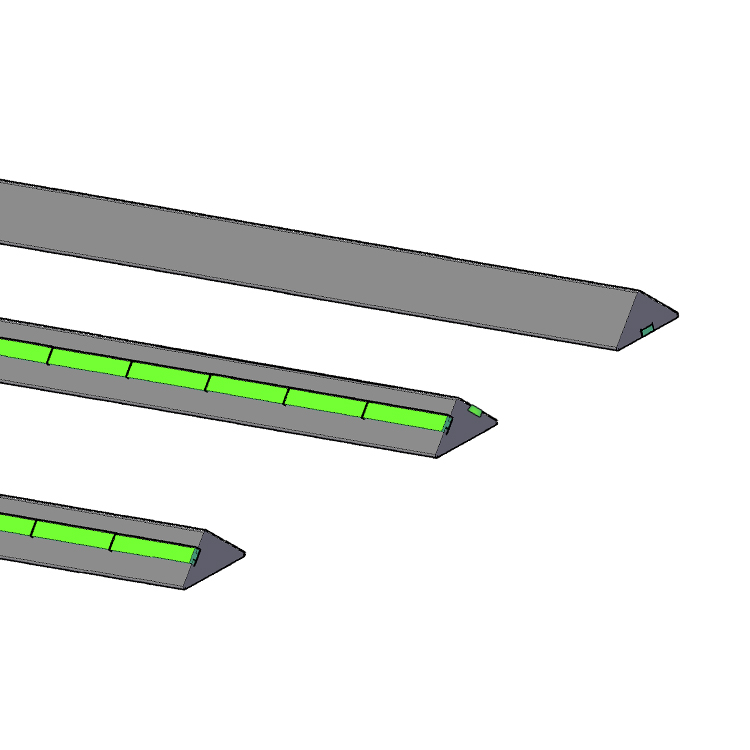

Premium Build: Excellent-quality steel casing featuring magnets implanted in them for sturdy and dependable fixation.
Versatile Shape: Triangular shape intended to produce 45° beveled edge on concrete elements.
Easy Handling: Tool-free, instant positioning on steel formwork is guaranteed by integrated magnets.
Reusable & Durable: Designed for a long service span in the harsh precast creation environments.

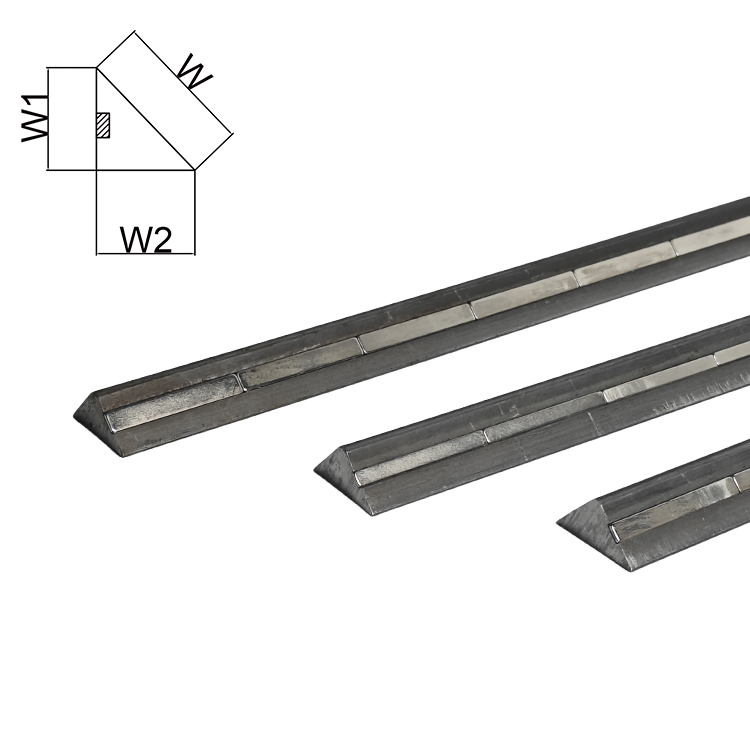

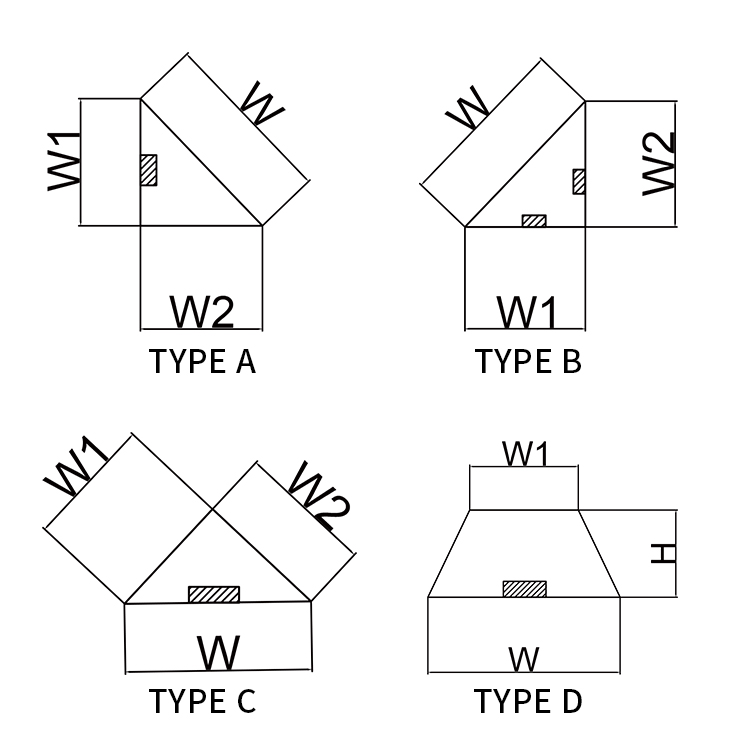

Specifications of Steel Magnetic Chamfer:
| Model |
L(mm) |
W1(mm) |
W2(mm) |
W(mm) |
Weigh(Kg/m) |
| WWMC2-A1 |
1000 |
10 |
10 |
14 |
0.5 |
| WWMC2-A2 |
15 |
15 |
21 |
1.1 |
| WWMC2-A3 |
20 |
20 |
28 |
1.7 |
| WWMC2-A4 |
25 |
25 |
35 |
2.4 |
| Other size on request |
| Model |
L(mm) |
W1(mm) |
W2(mm) |
W(mm) |
Weigh(Kg/m) |
| WWMC2-C1 |
1000 |
10 |
10 |
14 |
0.5 |
| WWMC2-C2 |
15 |
15 |
21 |
1.1 |
| WWMC2-C3 |
20 |
20 |
28 |
1.7 |
| WWMC2-C4 |
25 |
25 |
35 |
2.4 |
| Other size on request |
| Model |
L(mm) |
W1(mm) |
W2(mm) |
W(mm) |
Weigh(Kg/m) |
| WWMC2-B1 |
1000 |
10 |
10 |
14 |
0.5 |
| WWMC2-B2 |
15 |
15 |
21 |
1.1 |
| WWMC2-B3 |
20 |
20 |
28 |
1.7 |
| WWMC2-B4 |
25 |
25 |
35 |
2.4 |
| Othersize on request |
| Model |
L(mm) |
W(mm) |
W1(mm) |
H(mm) |
Weigh(Kg/m) |
| WWMC3-A1 |
1000 |
15 |
10 |
10 |
0.7 |
| WWMC3-A2 |
20 |
1.1 |
| WWMC3-A3 |
25 |
15 |
15 |
1.4 |
| WWMC3-A4 |
30 |
10 |
1.7 |
| WWMC3-A5 |
35 |
20 |
2 |
| WWMC3-A6 |
40 |
2.4 |
Utilization Process：
The magnetic chamfer needs to be positioned on the steel mold. Then, strong magnets immediately bond the chamfer strip to the mold in a way that does not require clamps or welding. A chamfer must be placed in the mold and when concrete is poured into the mold and cast into a smooth angled edge. When the concrete gets cured, the chamfer can be readily removed and re-used several times.
Advantages of Magnetic Chamfer in Precast Factories：
Increased Efficiency: Minimizes setup time.
Improved Safety: No welding or screwing required – minimizes the risk of damage to the worker and surface.
Cost-Effective: Reuseable for hundreds of cycles which makes it cheaper to purchase and operate upon.
Flexible Use: Comes in a number of sizes to accommodate various structural design requirements.
Why Utility Magnetic Chamfers Are Important?
Magnetic chamfers are mandatory for up-to-date production of precast concrete. They help:
-Minimize the chippage of edges while in transport and during installation
-Improve visual and structural quality
-Simplify mold preparation and maintenance
-Increase the life cycle value of precast components overall.
Why Wewin Magnet Co., Ltd?
Being in business for over a decade in industrial magnetic products, the Wewin Magnet Co., Ltd. embraces the venture in fulfilling:
-Providing customized solutions at an individual client’s specification.
-High magnetic strength and durability guarantee.
-Ensuring fast delivery and attention to the needs of clients
-Helping the global manufacturers of precast products with reliable and proven products.
